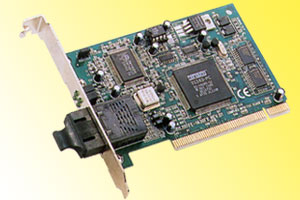

English | Fast Ethernet Fiber Card, SC Model No.: FE-1430SC |
 |
| FE-1430SC is affordable and high performance 32-bit Fast Ethernet 100Base-FX adapters for network demanding high bandwidth and flexibility.(SC connector) |
FEATURES
FE-1430SC is affordable and high performance 32-bit Fast Ethernet 100Base-FX adapters for network demanding high bandwidth and flexibility. It is in full compaliance with PCI Revision 2.x, IEEE 802.3u 100Base-FX standard. FE-1430ST/SC/ mode. Designed with INTEL Fast Ethernet LAN controller, FE-1430 throughput while maintaining low CPU utilization. FE-1430SC is with ST/SC connector with multi-mode fiber optic cable. The node to node network distance can be up to 2 Km in full-duplex operation. Diagnostic LEDs are easily visible for maintenance purpose. Extensive Networking Operating System (NOS) drivers are available - NetWare, Windows NT, Windows 95, Windows for Workgroups, Microsoft LAN Manager, OS/2 warp, IBM LAN Server, and SCO Unix.
| Item | SPECIFICATIONS |
| Standard | IEEE 802.3u Fast Ethernet 100Base-FX |
| Connector | FE-1430ST: ST(multi-mode) connectors Tx/Rx FE-1430SC: SC(multi-mode) connectors Tx/Rx FE-1430MT: MTRJ(multi-mode) connectors FE-1430VF: VF-45(multi-mode) connectors |
| Cable | Fiber: 50/125, 62.5/125, 100/140µm multi-mode |
Maximum Wire Length
| Node to Node: 412 meters Node to Node: 2000 meters |
| Data Transfer Mode/Speed | PCI bus 100Mbps speed Half or full-duplex mode |
| Diagnostic LEDs | Link, Activity, Collision and Full-duplex |
| NOS Supported | NetWare, IntraNetWare, Windows NT, Windows 95, Windows for Workgroups, Microsoft LAN Manager, OS/2 Warp, IBM LAN Server, SCO U |
| Power Requirements | 2.0A @ + 5V |
| Ambient Temperature | 0°C to 50°C |
| Humidity | 5% to 90% |
| Dimensions | 123mm(L) x 61mm(H) |
- Bus
- PCI
