English *** DISCONTINUED *** 100Base-FX To 10/100Base-TX Palm-size Media Converter
ADDITIONAL FEATURELink Fault Pass-Through (LFP)LFP. Link status on one port is propagated to the other port to notice the remote node. The LFP function works only when both converters own this capability. Furthermore, both converters should be supplied by the SAME manufacturer. The connection coming from different manufacturers or non-LFP converters may cease this function. |  |
TECHNICAL SPECIFICATIONS

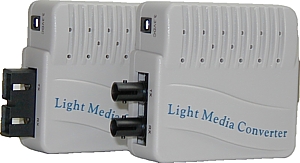

- Model: CFM1600SC / CFM1600ST
- Standards: IEEE 802.3u 100Base-FX/TX, IEEE 802.3 10Base-T
- Connectors:
CFM1600SC — 1310nm Multi-Mode Duplex-SC & RJ-45 (auto MDI/MDI-X)
CFM1600ST — 1310nm Multi-Mode Duplex-ST & RJ-45 (auto MDI/MDI-X) - dBm [ Min TX, Max TX, Sensitivity, Power Budget ]:
CFM1600SC [ -20dBm, -14dBm, -31dBm, 11dB ]
CFM1600ST [ -20dBm, -14dBm. -31dBm, 11dB ] - Data Transfer Rate:
100Mbsp for FX
10 or 100Mbps (auto-negotiation) for TP - Duplex Mode: Full for FX, Full or Half (auto-sense) for TP
- Cables / Max Distance:
Category 5 or above UTP, up to 100m
50/125, 62.5/125, 100/140µm Multi-Mode fiber, up to 2km - LEDs: TP LINK/ACT, FX LINK/ACT
- Power Requirement: 1A@+3.3V DC from AC-DC Adapter
- Operating Temperature: 0° to 40° C
- Humidity: 5% to 90%
- Dimension: 25 x 61 x 57.5mm (H x W x D)
- EMI Rating: FCC Class A, CE Mark Approval
