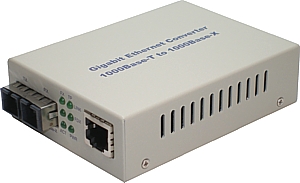

DAN-CGM3700SC

TECHNICAL SPECIFICATIONS

• Model:
  CGM3700SC
  CGM3700SC10 / CGM3700SC40 / CGM3700SC70
  CGM3700BD3.20 / CGM3700BD5.20
• Standards: IEEE 802.3z 1000Base-SX/LX, 802.3ab 1000Base-T
• Connectors: RJ-45 &
  850nm Multi-Mode Duplex-SC for CGM3700SC
  1310nm Single-Mode/10km Duplex-SC for CGM3700SC10
  1550nm Single-Mode/40km Duplex-SC for CGM3700SC40
  1550nm Single-Mode/70km Duplex-SC for CGM3700SC70
  1310nm (TX) Single-Mode/20km Simplex-SC for CGM3700BD3.20
  1550nm (TX) Single-Mode/20km Simplex-SC for CGM3700BD5.20
• dBm [ Min TX, Max TX, Sensitivity, Power Budget ]:
  CGM3700SC [ -10dBm, -4dBm, -17dBm, 7dB ]
  CGM3700SC10 [ -9.5dBm, -3dBm, -21dBm, 11.5dB ]
  CGM3700SC40 [ -6dBm, 0dBm, -23dBm, 17dB ]
  CGM3700SC70 [ 0dBm, 5dBm, -23dBm, 23dB ]
  CGM3700BD3.20 [ -8dBm, -3dBm, -21dBm, 13dB ]
  CGM3700BD5.20 [ -8dBm, -3dBm, -21dBm, 13dB ]
• Data Transfer Rate: 1000Mbps
• Cables / Max Distance:
  Category 5 or above UTP, up to 100m
  50/125, 62.5/125, 100/140µm Multi-Mode fiber, up to 220
  8.3/125, 8.7/125, 9/125, 10/125µm Single-Mode fiber, up to
       10km for CGM3700SC10
       20km for CGM3700BD3.20/CGM3700BD5.20
       40km for CGM3700SC40
       70km for CGM3700SC70
• LEDs:
  Unit — PWR, ACT
  SX Port — SX Link, SX FDX
  TP Port — TP Link, TP FDX
• Power Requirement: 2A@+5V DC
• Operating Temperature: 0° to 50° C
• Humidity: 5% to 90%
• Dimension: 26.2 x 70.3 x 94mm (H x W x D)
• Safety: FCC Class A, CE Mark Approval, RoHS Compliance
