Sealevel 7406e

7406e COMM+4/232.PCIe Low Profile PCI Express 4-Port RS-232 Serial Interface

Description

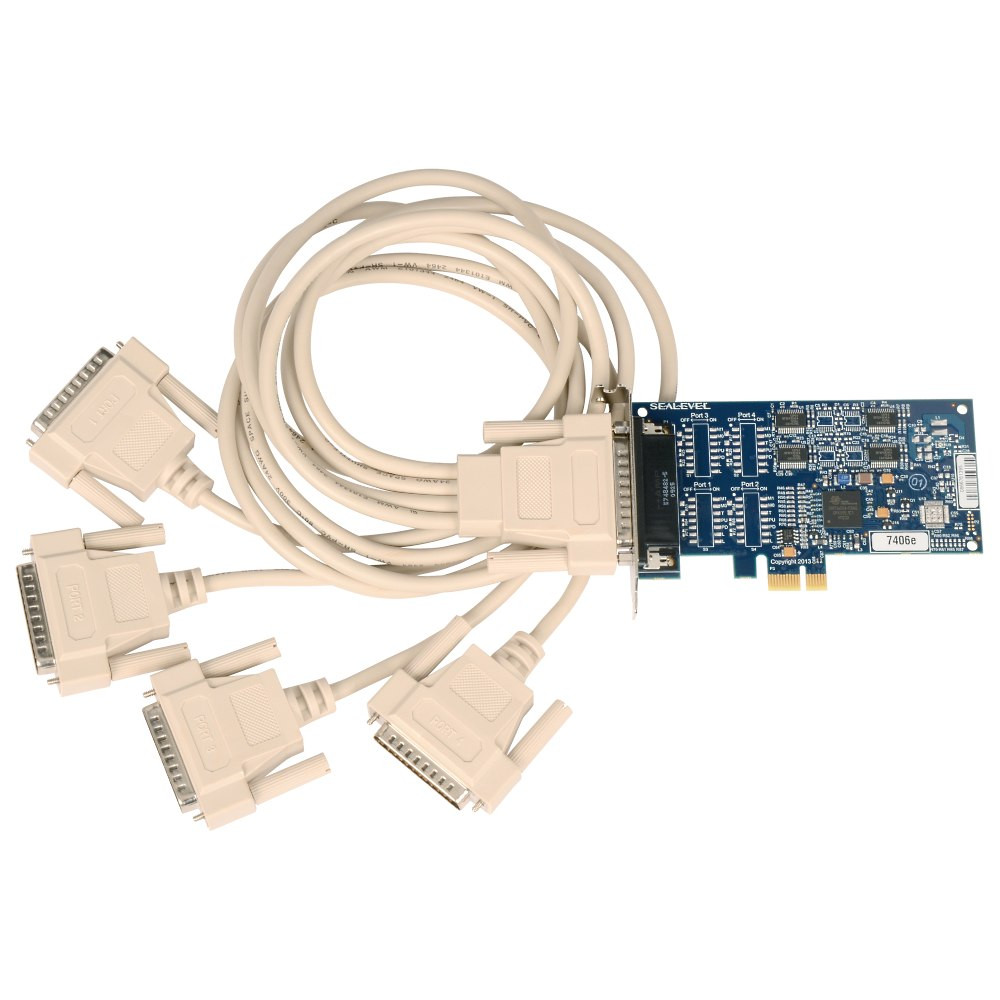

The 7406e low profile PCI Express serial interface provides four RS-232 serial ports. For maximum compatibility with a wide range of peripherals, the board supports all standard RS-232 modem control signals. The serial ports utilize a 16C954 UART with 128-byte Tx/Rx FIFOs that enables data rates to 921.6K bps for reliable high-speed communications in data intensive applications. This high-performance UART includes 9-bit framing support and is fully software compatible with legacy 16550 applications. In addition, the board derives a 62.5 MHz clock from the PCI Express link. This ultra-high speed clock is divided by a flexible 8-bit clock prescalar with 1/8 steps to provide support for the widest range of standard and non-standard baud rates.

The Sealevel SeaCOM software driver and utilities make installation and operation easy using Microsoft Windows and Linux operating systems.

The 7406e is a PCI Express X1 board compatible with any low profile PCI Express slot. If you have a standard size PCI Express slot, be sure to select the standard profile bracket. The board includes a 36 inch cable that terminates to four DB25M connectors.

• • 16C954 buffered UARTs with 128-byte FIFOs
• • Oscillator and clock prescalar support wide range of baud rates
• • Supports 9-bit protocol framing
• • Each port supports data rates to 921.6K bps
• • PCI Express X1 compliant
• • Compatible with all low profile PCI Express slots
• • All modem control signals implemented
• • Included 36″ cable terminates to four DB25M connectors (Item# CA199)
