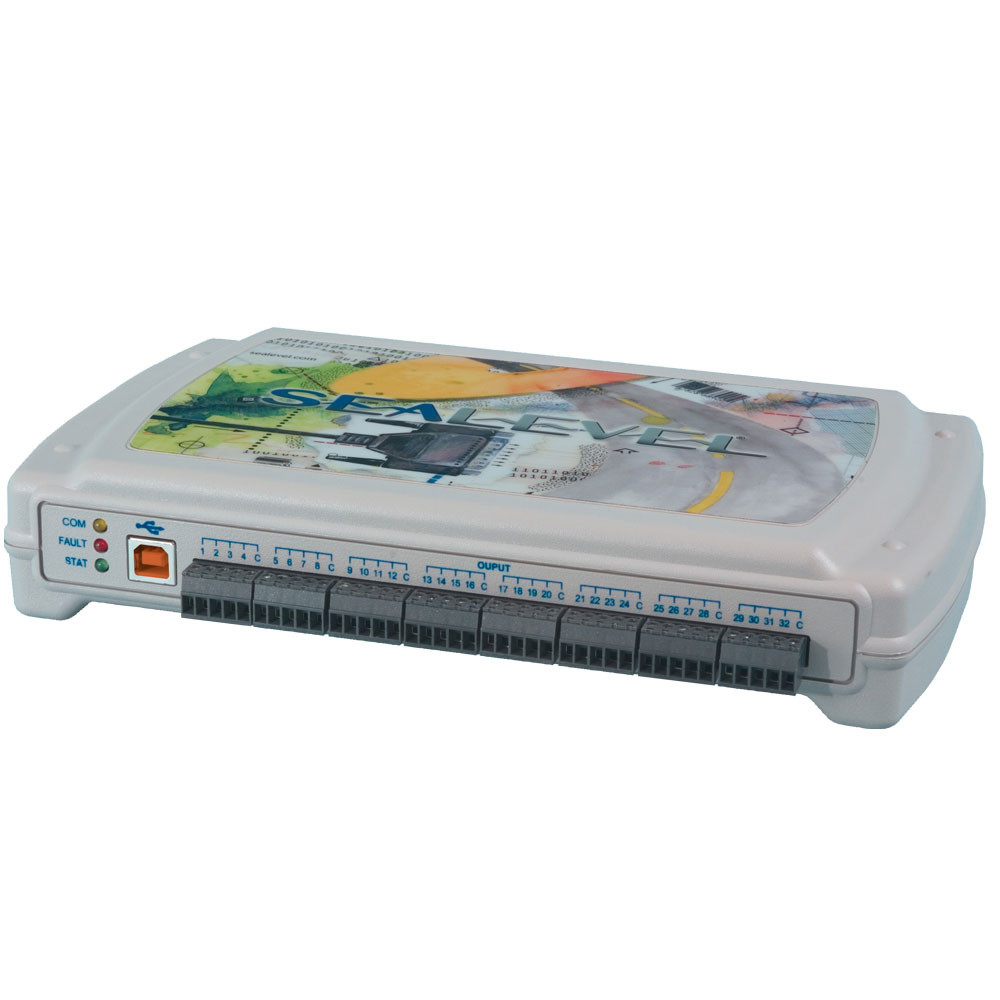

English 8224 SeaDAC REL-32 USB to 32-ports Reed Relay Outputs?
| |
|
| The 8224 provides 32 SPST Form A dry contact Reed relays for PC-based control and automation of equipment via an available USB port. Reed relays provide long life switch closures well suited to low current devices. Outputs are grouped into four-bit segments that each share a common for easy wiring via removable 3.5mm terminal blocks. SeaDAC modules are housed in a rugged, attractive plastic enclosure and include a highly-retentive USB Type B connector to prevent accidental disconnection. Standard operating temperature range of SeaDAC modules is 0°C to 70°C and extended temperature range (-40°C to +85°C) is optional. The SeaMAX software suite supports the SeaDAC family and is designed to work with third party applications via the SeaMAX API. Installation and operation is easy using Windows 2000/XP and SeaMAX now supports the Windows Vista operating system. Download the updated driver below. |  |
|
Technical Specifications | |
| Number of I/O | 32 Outputs |
| Power Requirement | +5V @ 500mA |
| Contact Voltage | 60VDC max. |
| Contact Current | 500mA max. |
| Contact Operate Time | 0.5ms max. |
| Contact Bounce Time | 0.5ms max. |
| Contact Release Time | 0.2ms max. |
| Operating Temperature | 0 - +70°C |
| Storage Temperature | -50° - +105°C |
| Humidity Range | 10 - 90% R.H. |
| USB Spec. | 1.1 Compliant |
| 2.0 Compatible | |
| Dimensions | 9.2" (L) x 5.3" (W) x 1.7" (H) |
Features:
- 32 SPST Form A Reed relays
- Removable screw terminals simplify field wiring
- High-retention USB Type B connector prevents accidental disconnection of USB cable
- Powered by USB connection
- Sealevel software supports Windows 2000/XP/Vista operating systems
- Housed in rugged, attractive plastic enclosure
- 72" USB A to B cable included
