Sealevel 8208

8208FX SeaLINK REL-16 USB to 16 Reed Relay Outputs Digital Interface Adapter

Description

This product is classified as legacy and will be supported with limited, available inventory. Call for current pricing and product availability.

Sealevel will support legacy products through technical and warranty support, software drivers and product manuals. Please contact Sales for further information. For new product designs, we recommend the SeaI/O-440U.

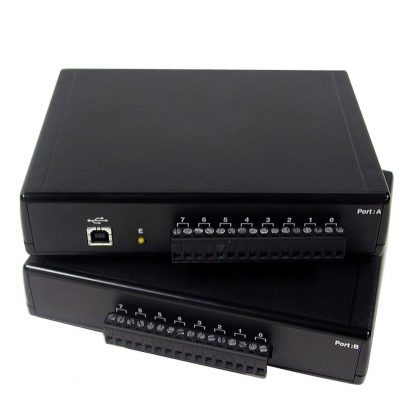

The SeaLINK® 8208FX USB digital I/O interface adapter provides 16 outputs for PC-based control and automation of equipment.

The Reed relay outputs provide high quality, long-life, low current (10 Watt maximum) dry contact switch closures. Our unique serial string naming feature allows multiple USB digital I/O devices to retain their specific identity within the system. Onboard removable screw terminals are provided to simplify wiring connections. A DIN rail mounting option is available.

Sealevel’s SeaIO Classic software drivers and utilities make installation and operation easy using Windows operating systems.

To simplify installation and configuration, a printed copy of the USB Digital I/O QuickStart Guide is included with all USB Digital I/O orders.

Important: If you are a previous customer of non-FX SeaLINK digital I/O adapters, you must update your SeaIO driver for proper operation of this 8208FX module. Please read this Support Article for details.

Get a jumpstart on your digital I/O development with The Digital I/O Handbook that will provide helpful information that you will use again and again. Check out Chapter 1 for an overview of logic principles.

• • 16 Reed relay outputs (SPST)
• • Highly reliable 10VA DIP Reed relays
• • Two 16-pin removable screw terminals simplify field wiring
• • Powered by USB connection
• • DIN rail mounting option available (Item# DR102)
• • Includes 6′ USB device cable (Item# CA179)
• • Sealevel SeaIO Classic software supports Windows operating systems
