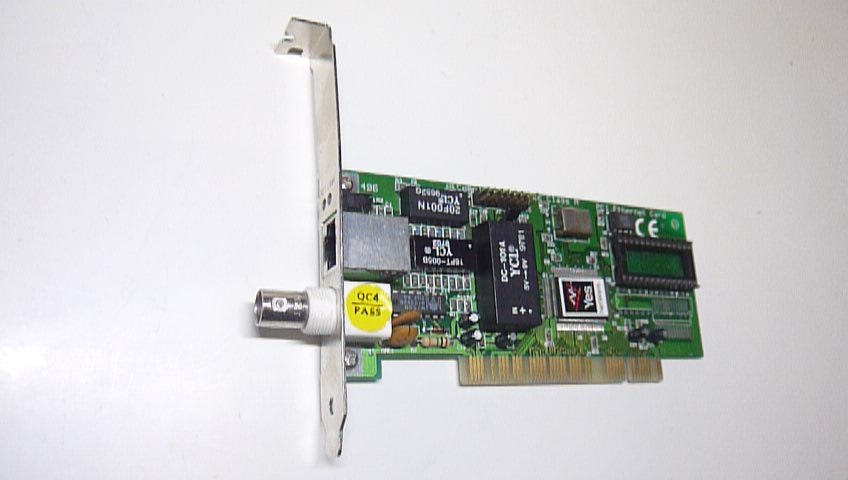

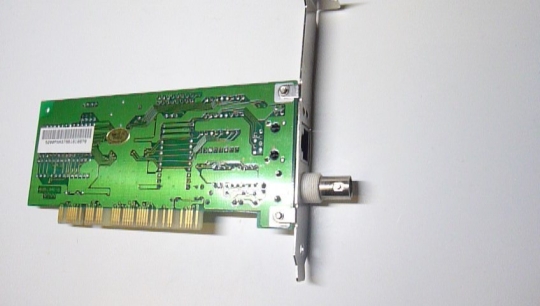

English EN5200PXA EDIMAX ETHERNET CARD PCI 10BASE-T AND 10BASE-2 COAX THINNET
Edimax EN 5200PXA - network adapter Series Specs
Edimax EN 5200PXA - network adapter
Part Number: EN-5200PXA
POWER DEVICE
- TypeNone
INTERFACE PROVIDED
- GenderFemale, Female
- Connector Qty1, 1
- TypeNetwork, Network
- InterfaceEthernet 10Base-T, Ethernet 10Base-T
- Qty1, 1
- Connector TypeRJ-45, BNC
- Connector LocationExternal, External
NETWORKING
- Cabling TypeEthernet 10Base-2, Ethernet 10Base-T
- Data Transfer Rate10 Mbps
- Status IndicatorsLink activity, Port transmission speed
- Network / Transport ProtocolIPX/SPX, TCP/IP
- FeaturesFull duplex capability
- Data Link ProtocolEthernet
- Compliant StandardsIEEE 802.3
- Connectivity TechnologyWired
RAM
- Installed Size32 KB
SYSTEM REQUIREMENTS
- OS RequiredMicrosoft Windows NT, UNIX, Microsoft Windows 95/98
ENVIRONMENTAL PARAMETERS
- Min Operating Temperature32 °F
- Max Operating Temperature131 °F
- Humidity Range Operating10 - 90%
HEADER
- Product LineEdimax EN
- Model5200PXA
- Packaged Quantity1
- CompatibilityPC, Unix
INTERFACE REQUIRED
- TypeNone
EXPANSION SLOTS
- Total Qty1
- Free Qty1
DIMENSIONS & WEIGHT
- Depth6.5 in
- Height4.8 in
SOFTWARE
- TypeDrivers & Utilities
SLOT REQUIRED
- TypePCI
- Total Qty1
SERVICE & SUPPORT
- TypeLimited lifetime warranty
SERVICE & SUPPORT DETAILS
- Service IncludedParts and labor
- TypeLimited warranty
- Full Contract PeriodLifetime
- LocationCarry-in
GENERAL
- ManufacturerEdimax Technology
