Pepperl+Fuchs Comtrol HOXX5008RJ_ref

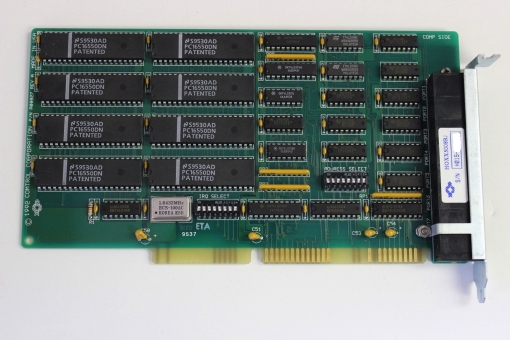

HOXX5008RJ_ref Hostess 550 8-ports HOXX500RJ refurbished, card only



Asynchronous and Synchronous Communication

The Hostess range of multiport serial controllers includes both intelligent and non-intelligent synchronous and asynchronous products designed to meet your needs. Widely used by many major OEMs and System Integrators, they are simple to install and easy to use.



Hostess and Hostess 550

These were the first multiport controllers for the PC and are still in use today in a wide range of systems. They provide a low cost asynchronous solution using non-intelligent controllers.



Features include

Full Modem control Wide range of I/O addresses and interrupts Extensive Programmers guide Unique poll register Interface options include RS232/422, Current Loop and RS485 FIFO buffering on the Hostess 550 to reduce number of interrupts







Hostess Specifications

The specifications for the range of Hostess products are outlined below.



Conditions and Specifications-ISA
Product	Conditions		Specifications
	Heat Output	Mean time between failures	I/O ports/ expansion slot	Interfaces	Interrupt
Hostess - 4 port	4.9w	38.6 years	4	RS 232/ 422/ 485/ Current loop	2, 3, 4, 5, 10 & 11
Hostess - 8 port	8.8w	18.3 years	8	RS 232/ 422/ 485/ Current loop	2, 3, 4, 5, 10 & 11
Hostess 550 - 4 port	6.8w	38.6 years	4	RS 232/ 422/ 485/ Current loop	2, 3, 4, 5, 10 & 11
Hostess 550 - 8 port	10.8w	18.3 years	8	RS 232/ 422/ 485/ Current loop	2, 3, 4, 5, 10 & 11
Hostess 550 - 16 port	7.3w	8.3 years	16	RS 232/ 422	2, 3, 4, 5, 10, 11 & 12
Hostess 550 Quadcable	2.94w	28.0 years	4	RS 232	5, 7, 10 , 11 & 12
Hostess 550 Octacable	4.81w	20.6 years.	8	RS 232	5, 7, 10 , 11 & 12
Hostess i - 8 port	12.34w		8	RS 232/ 422	3-5, 9-12 & 15
Hostess i - 16 port	16.13w		16	RS 232/ 422/ 485	3-5, 9-12 & 15
Smart Hostess - 8 port	16.5w	8.4 years	8	RS 232/ 422/ 485/ Current loop	2-7, 9-12, 14 & 15



Conditions and Specifications-ISA
Product	Control by device driver			Current consumption
	Baud Rate (RS-232)	Buad Rate (RS-422)	Baud rate (RS-485)	+5VDC	+12VDC	-12VDC
Hostess - 4 port	50 to 115.2 KB	50 to 115.2 KB	50 to 115.2KB	720mA	54mA	60mA
Hostess - 8 port	50 to 115.2 KB	50 to 115.2 KB	50 to 115.2KB	1.2A	112mA	130mA
Hostess 550 - 4 port	50 to 115.2 KB	50 to 115.2 KB	50 to 115.2 KB	1.1A	54mA	60mA
Hostess 550 - 8 port	50 to 115.2 KB	50 to 115.2 KB	50 to 115.2 KB	1.6A	112mA	130mA
Hostess 550 - 16 port	50 to 115.2 KB	50 to 115.2 KB		1.2A	60mA	50mA
Hostess 550 Quadcable	50 to 115.2 KB			260mA	50mA	90mA.
Hostess 550 Octacable	50 to 115.2 KB			300mA	100mA	180mA
Hostess i - 8 port	50 to 38.4 KB	50 to 38.4 KB		1.740A	0.004A	0.066A
Hostess i - 16 port	50 to 38.4 KB	50 to 38.4 KB	50 to 38.4 KB	2.540A	0.005A	0.220A
Smart Hostess - 8 port	50 to 76.8 KB	50 to 76.8 KB	50 to 76.8 KB	2.73A	142mA	105mA



Interfaces
4 port	RS232, DB9 male
	RS232/422, DB25 female
	RS232/422, DB25 male
	RS422/485, DB9 female
8 port	RS232, DB9 male
	RS232/422, DB25 female
	RS232/422, DB25 male
	RS422/485, DB9 female
16 port	DB25 female



Specifications Common to all asynchronous Hostess products
Product	Air Temperature		Humidity (non- condensing)		Altitude	Control		No. of cards per PC
	System on	System off	System on	System off		Data bits	Stop bits
Hostess - 4 port	0 to 70°C	-65 to 150°C	8% to 80%	20% to 80%	0 - 3048 metres	5, 6, 7 or 8	1, 1.5 or 2	4
Hostess - 8 port	0 to 70°C	-65 to 150°C	8% to 80%	20% to 80%	0 - 3048 metres	5, 6, 7 or 8	1, 1.5 or 2	4
Hostess 550 - 4 port	0 to 70°C	-65 to 150°C	8% to 80%	20% to 80%	0 - 3048 metres	5, 6, 7 or 8	1, 1.5 or 2	4
Hostess 550 - 8 port	0 to 70°C	-65 to 150°C	8% to 80%	20% to 80%	0 - 3048 metres	5, 6, 7 or 8	1, 1.5 or 2	4
Hostess 550 - 16 port	0 to 70°C	-65 to 150°C	8% to 80%	20% to 80%	0 - 3048 metres	5, 6, 7 or 8	1, 1.5 or 2	4
Hostess 550 Quadcable	0 to 70°C	-65 to 150°C	8% to 80%	20% to 80%	0 - 3048 metres	5, 6, 7 or 8	1, 1.5 or 2	4
Hostess 550 Octacable	0 to 70°C	-65 to 150°C	8% to 80%	20% to 80%	0 - 3048 metres	5, 6, 7 or 8	1, 1.5 or 2	4
Hostess i - 8 port	0 to 40°C	-20 to 85°C	8% to 80%	20% to 80%	0 - 3000 metres	5, 6, 7 or 8	1, 1.5 or 2	4
Hostess i - 16 port	0 to 40°C	-20 to 85°C	8% to 80%	20% to 80%	0 - 3000 metres	5, 6, 7 or 8	1, 1.5 or 2	4
Smart Hostess - 8 port	0 to 70°C	-65 to 125°C	8% to 80%	20% to 80%	0 - 3048 metres	5, 6, 7 or 8	1, 1.5 or 2	4<

All Hostess products are UL-listed, have FCC Class A & CE Class A Certification.
