DAN-CEM0100

10Base-2 BNC <> 10Base-T RJ-45 Ethernet Converter

OVERVIEW CEM0100 is a media translator that translates the signals between Ethernet 10Base-T UTP medium and thin Ethernet 10Base-2 coaxial medium. Collision data is also translated to ensure 100% collision detection in any combination of network segments or devices. CEM0100 is an ideal solution to provide the connection between 10Base-T and Thin-Net backbone where BNC port is not available on the existing 10Base-T concentrator. Instead of replacing the 10Base-T concentrator with the one equipped with BNC port, CEM0100 can provide the solution at very low cost. With the size similar to a match box, CEM0100 can easily be installed in the limited space environment. 4 diagnostic LED indicators provide clear and quick diagnosis if any network problem is encountered. CEM0100 comes with an external AC power adapter.

DEVICE DRIVERS SUPPORTED

TECHNICAL SPECIFICATIONS

• Model:CEM0100
• PC Supported:n/a
• Standards:IEEE 802.3 Ethernet 10Base-T and 10Base-2
• Network Connector:
  UTP RJ-45 jack (MPR/DTE Switch Selectable), 1 BNC connector

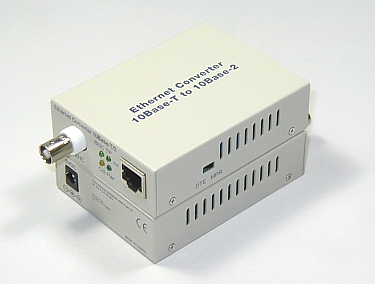

  ( Both RJ-45 jack and BNC connector are located on the SAME end. Please refer to above picture.)
• LAN Controller:n/a
• Data Transfer Rate: 10Mbps
• Duplex:Half
• Cable:Unshielded Twisted-pair Category 3/4/5, RG-58A/U coaxial cable
  Cable Limitation:

  UTP (max.)	: 100m (328ft)
  Coaxial (max. per segment)	: 185m (607ft)

• LEDs: POWER, BNC ACT, TP ACT, and COL
• Power Requirement: 1A@+5V DC
  External Power Adapter:100-240V AC, 50/60Hz, 0.5/0.25A
• Ambient Temperature: 0° to 50° C
• Humidity: 5% to 90%
• Dimensions:26.2 x 70.3 x 94 mm (H x W x D)
• EMI Rating: FCC Part 15 Class A and CE Mark
