English | SNAP-TEX-CBS6 8-wire Cable for SNAP I/O Modules, Straight-through Wiring |
  |

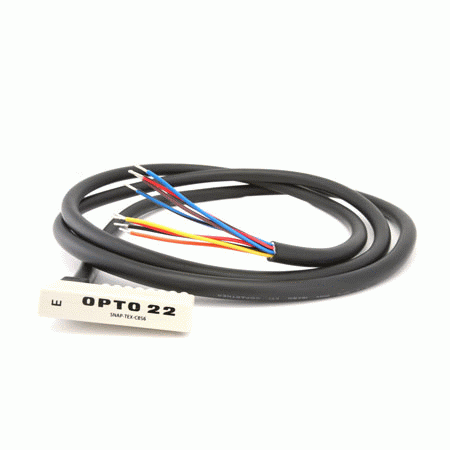

wiring from the top of a SNAP I/O module to a SNAP TEX breakout board. The cable is six feet (1.8 m) long.
Installation, maintenance, and troubleshooting are faster and simpler using SNAP TEX cables. Each cable snaps into the
top of one module and terminates at the breakout board with 18-gauge, color-coded flying leads, already stripped and
ready for wiring. The leads attach easily to the breakout board with spring connectors.
NOTE: On the SNAP-TEX-CBS6, wiring is straight through; there are no terminal connections. This cable can be used
with many digital and analog input and output modules.
| Feature | SNAP-TEX-CBO6 | SNAP-TEX-CBE6 | SNAP-TEX-CBS6 |
| Cable length | 6 feet (1.8 meters) | 6 feet (1.8 meters) | 6 feet (1.8 meters) |
| Connector | 8 pins, 0.2 in. (5.08 mm) center- to-center | 8 pins, 0.2 in. (5.08 mm) center- to-center | 8 pins, 0.2 in. (5.08 mm) center- to-center |
| Connectors | 32 spring connectors; accommo dates eight 4-channel modules | 16 spring connectors; accommo dates four 4-channel modules | 16 spring connectors; accommo dates four 4-channel modules |
| Wires | 8 pre-stripped, color-coded, 18 gauge | 8 pre-stripped, color-coded, 18 gauge | 8 pre-stripped, color-coded, 18 gauge |
| Bussing | Odd-numbered pins connected | Even-numbered pins connected* | No connected |
| Agency Approvals | CE, RoHS, DFARS | CE, RoHS, DFARS | CE, RoHS, DFARS |
| Warranty | 30 months | 30 months | 30 months |
| *Do NOT USE the CBE6 with a SNAP-TEX-FB16-H or -L breakout board. The FB16s have odd-numbered pins connected. | |||
