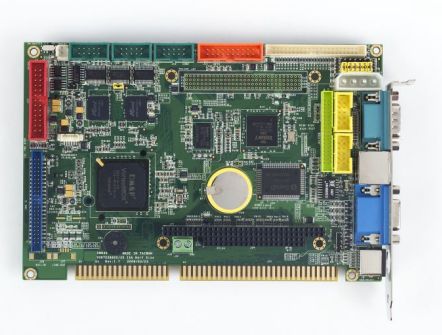

English IPC-ISA-SlotCPU-800DX
SlotCPU, ISA, Halfsize, QNX2, x86-DX-CPU 800MHz, 256/512 MB RAM,
VGA, 1xEIDE, 1xFloppy, 1xLPT, 3xRS232, 1xRs232/422/485, 4xUSB 2.0
CPU DM&P Vortex86DX
Max. Speed 800 MHz
L1 Cache 16 KB I/D-Cache
L2 Cache 256 KB
Chipset DM&P Vortex86DX
BIOS Award integrated in DM&P Vortex86DX
Bus ISA Full 16-bit ISA Bus signal
Memory
Technology
Default onboard DDR2 256MB (For VE SKU)
Default onboard DDR2 512MB (For F SKU)
Socket -
Graphics
Controller
Chipset integrated VGA controller
VGA mode: SM712 graphics chip supports 1024 x 768 @ 24-bit true color
LCD mode: SMI SM712 2D graphics chip supports 1024 x 768 @ 18-bit TFT
VRAM Shared 4 MB
LVDS 18 bit LVDS (optional)
TTL Up to 24-bit TTL for TFT LCD
Dual Display Supports VGA+LCD simultaneous display
Ethernet
Interface 10/100 Mbps
Controller LAN on Vortex86DX
Connector RJ-45 x 1
EIDE
Mode UDMA 100
Channel 1 (2 IDE devices from secondary IDE)
SATA (150 MB/s) Port 1 (F SKU)
I/O Interface
USB 4 (USB 2.0 ports)
Serial
F SKU: 2 RS-232/422/485 (1 Real I/O and 1 Pin header) + 2 RS-232 (with Pin header)
VE SKU: 2 RS-232 (1 Real I/O and 1 Pin header)
Optional: PCA-COM485; Add 4 RS-422/485 with Auto-Flow Control (Need to check if IRQ is available or not)
Parallel 1 (EPP/ECP/SPP)
FDD 1
GPIO 8-bit 4 in/4 out
PS/2 1 (6-pin DIN socket on bracket for PS/2 keyboard and mouse, 6-pin wafer box connector for keyboard only)
Watchdog Timer
Output System reset/IRQ11
Interval Programmable, 1~255 sec/min
Miscellaneous
Audio Output -
Solid State Disk Compact Flash socket (Type I/II) from primary master
Power Requirement
Voltage +12 V +5 V
Current 0.04 A 1.44 A
Environment
Operating Non-Operating
Temperature
0 ~ 60 °C (32 ~ 140 °F) (operating humidity: 40 °C
@ 85% RH Non-Condensing)
-40 °C ~ 85 °C and 60 °C @ 95% RH
Non-Condensing
Physical Dimensions (L x H) 185 x 122 mm (7.3" x 4.8")
- Bus
- ISA
