Connect Tech CBG209

CBG209 8inch XDG024 8 Port Beakout Cable

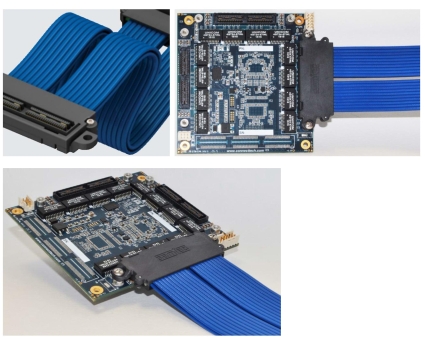

Board-to-Cable Details

The XDG024 has a unique port breakout architecture where that it cannot only breakout ports via
another breakout board with a board-to-board connector, but also by the means of a high-density cables
system.  These cables use the Samtec HQDP which is a High Speed Twinax Cable Assembly.  The uses a 40
pair grouping so that 8-ports per HQDP cable can be broken out at once.  Please refer to the pinout sections
above for pin mapping details.

Connect Tech has a standard offering:
CBG209   XDG024 8inch Breakout Cable (8-Ports)

These cables can also be sourced directly from Samtec in any length with the part numbers shown below:

Cable for XDG024
HQDP-040- XX.XX -TTL-TTL-1-B
XX.XX = Length in Inches
