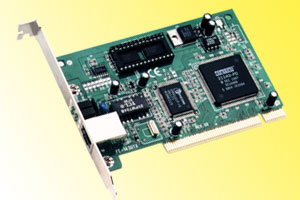

English | PCI 10/100Mbps Fast Ethernet Card (DEC 21143) Model No.: FE-1430TX |
 |
| FE-1430TX is a high performance 32-bit 10/100 Fast Ethernet adapter for networks demanding high bandwidth and flexibility.It features Nway Auto-Negotiation for speed selection of 10Mbps or 100Mbps, in half-or full-duplex mode. |
FEATURES
FE-1430TX is a high performance 32-bit 10/100 Fast Ethernet adapter for networks demanding high bandwidth and flexibility. It features Nway Auto-Negotiation for speed selection of 10Mbps or 100Mbps, in half-or full-duplex mode. Designed with DEC21143 CardBus 10/100Mbps Ethernet LAN controller and high-speed 10/100 Phyceiver, FE-1430TX uses the Bus-Mastering DMA approach to optimize throughput while maintaining low CPU utilization. Diagnostic LEDs are visible for maintenance purpose. Extensive Networking Operating System (NOS) drivers are available.
| Item | SPECIFICATIONS |
| Standards | IEEE802.3 10Base-T and IEEE802.3u 100Base-TX |
| Connector | Shielded RJ-45 jack 3-pin |
| Cable | Category 3/5 UTP (10Base-T) Category 5 UTP (100Base-TX) Wake-On-LAN cable (come with FE-1430TX.W) |
| Maximum Wire Length | Hub to Node: 100 meters Hub to Hub: 5 meters Node to Node: 205 meters |
| Data Transfer Mode/Speed | PCI bus master 10/100Mbps Full Half-duplex mode |
| Diagnostic LEDs | Link, Activity, 100Mbps and Full-Duplex |
| NOS Supported | NetWare, IntraNetWare, Windows NT,Windows 95/98, Windows for Workgroups,LAN Manager, OS/2 Warp, IBM LAN Server, LANtastic/AI, SCO Unix |
| Power Requirement | 2.0A @ + 5V |
| Wake-Up Standby Power | 0.6A @ + 5V |
| Ambient Temperature | 0°C to 50°C |
| Humidity | 5% to 90% |
| Dimensions | 122mm(L) x 80 mm (H) |
| Approval | FCC Part 15 Class A & CE Mark |
- Bus
- PCI
