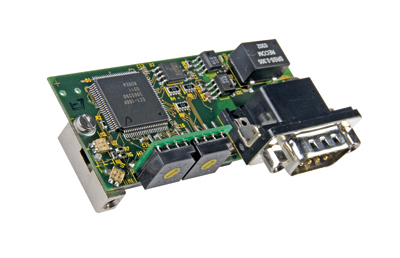

Communication Module CA-Type
CANopen-Slave

COM-Modules are a simple and economical solution for the implementation of fieldbus interfaces. As a compact plug-in board it contains the entire CANopen including the potential-free driver interface.
The data exchange with the Host systems is carried out via an easy to handle interface, which has a dual-port memory that is the same on all models. Here, the process variables are carried in a process image, whilst commands are transferred over a mailbox. The module accepts the data and carries out the data exchange via the CANopen network, independently without any load on the Host system.
The configuration can be carried out with the aid of our SyCon® System Configurator, e.g. via the RS232C diagnostic interface.

Facts at a glance:

• All major Fieldbus and Real-Time Ethernet protocols as Master and Slave
• Dual-Port-Memory with 8/16 bit data bus to the host
• Single hardware for all Real-Time Ethernet protocols
• Low-Cost variants with address switch and fast SPI for Fieldbus Slave
• Complete communication device including network specific connection
• PROFINET IRT device with fiber-optics pursuant AIDA
• Ready to use, due to preloaded firmware
• One design for all networks due to consistent interfaces and tools
• Integrated Web-Server
