G4AD6

G4AD6HS

G4AD7

G4AD7HS

G4AD9

G4AD11

G4AD12

G4AD13

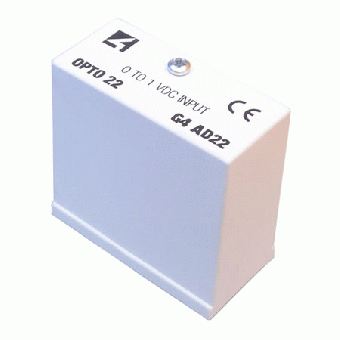

G4AD22

Nominal Voltage Input

0 to 5 VDC

0 to
5 VDC

0 to
10 VDC

0 to
50 mV

-5 to
+5 VDC

-10 to
+10 VDC

0 to
100 mV

0 to
1 VDC

Over/Under Range

-0.3 to
11 VDC

-0.6 to
22 VDC

-0.6
to 22 VDC

-3.0 to
110 mV

-5.6 to
21 VDC

-11.2 to
42 VDC

-6 to
220 mV

-60 mV to
2.2 VDC

Accuracy*

± 5 mV

± 10 mV

± 100 µV

± 10 mV

± 20 mV

± 100 µV

± 1 mV

Response Time
% Of Scale Change
5%
63%

8.4 msec
165 msec

< 3 msec
< 3 msec

8.4 msec
165 msec

< 3 msec
< 3 msec

2 msec
36 mse

8.4 msec
165 msec

2 msec
36 msec

< 3 msec
< 10 msec

* Accuracy figure requires use of gain and offset commands.

Resolution	12 bits
Isolation (Transient) Input-to-output Input-to-analog-supply	4,000 Vrms 4,000 Vrms
Ambient Temperature Operating Storage	-30 to 70°C -40 to 85°C
