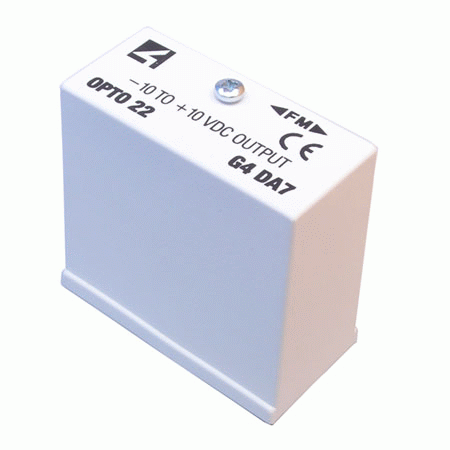

English | G4DA7 -10 To +10 VDC Output |
  |
| G4DA4 | G4DA5 | G4DA6 | G4DA7 | |
| Output Voltage | 0 to 5 VDC | 0 to 10 VDC | -5 to +5 VDC | -10 to +10 VDC |
| Accuracy | ±5 mV | ±10 mV | ±10 mV | ±20 mV |
| Maximum Output current | 20 mA |
| Output response time | Full scale step change in 3 ms |
| Resolution | 12 bits |
| Isolation (Transient) Input-to-output Input-to-analog supply | 4,000 Vrms 4,000 Vrms |
| Ambient Temperature Operating Storage | 0 to 70 °C -25 to 85 °C |
