32058-6 RocketLinx ES8108F-S-XT Unmanaged 8-Port industrial Ethernet switch, extended temperature, Single-Mode Fiber

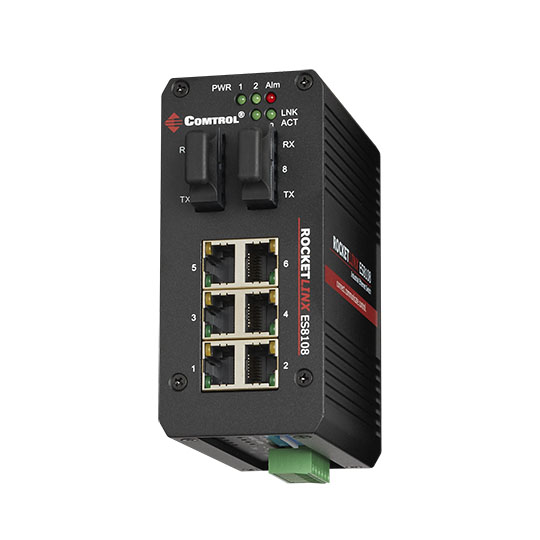

RocketLinx ES8108F-S-XT

Unmanaged Industrial Ethernet switch, eight Fast Ethernet ports, CID2 certification, extended temperature ratings

Part Number: 32058-6





• Class I Division 2 certified for potentially hazardous locations
• Six 10/100BASE-TX ports and two 100BASE-FX (Single-Mode) fiber ports
• 2.0Gbps Switch Fabric with excellent data exchange performance
• QoS for packet forwarding precedence
• Broadcast storm packet filtering
• VLAN tag priority support
• Supports 1.5KV Hi-Pot isolation protection
• Redundant dual power input 10 to 60VDC
• Port and Power Event Alarm
• Compact aluminum case with IP31 grade protection
• -40° to 75°C operating temperature for harsh environments
• DIN rail installation
• RoHS 2 compliant under CE

PRODUCT UPDATE: We have recently improved the ES8108 series. View our comparison chart for the updates. RocketLinx ES8108 series product change notification

The RocketLinx ES8108F-S-XT is Comtrol Corporation’s 8-port (10/100BASE-TX ports and two 100BASE-FX Single-Mode fiber ports) industrial switch featuring a 2.0Gbps Packet Switch engine with packet forwarding and filtering mechanisms to meet industrial communications standards. It provides packet forwarding capabilities to handle 64 to 1522 byte sizes in two priority queues to optimize data forwarding performance. Broadcast storm filtering and flow control functions ensure data delivery free of traffic congestion.

For installation in hazardous or industrial environments, the RocketLinx ES8108F-S-XT is equipped with two redundant power inputs, CID2 certification, features wide input voltage ranges, and operates within a broad -40° to 75°C temperature range. For ease-of-maintenance, the RocketLinx ES8108F-S-XT has one alarm relay for port link and power events to assist engineers with on-site notifications.

RocketLinx Reliability

The RocketLinx ES8108F-S-XT has dual power inputs, and can also operate on 12 to 48VDC. Dual power inputs and built-in reverse power polarity protection are designed as the redundant power system to ensure power continuity. With the 1.5KV Hi-Pot isolation protection, CE/FCC/UL regulatory approvals, CID2 certification, and extended temperature ratings, the RocketLinx ES8108F-S-XT is the ideal switch solution for industrial and hazardous environments.

• Bus Interface Specification10/100BASE-TX, 100BASE-FX (Single-Mode)
• EnclosureIP31 Grade Aluminum Metal Case
  Drop-Waterproof and Dustproof
• InstallationDIN Rail
• LED IndicatorsPower 1, Power 2, Port/Power Alarm, RJ45 Port Link/Activity
• Dimensions4.72" x 2.17" x 4.58"
  120 x 55 x 116 mm
• Product Weight1.25 lb
  0.57 kg

Technology

• StandardIEEE 802.3 10BASE-T
  IEEE 802.3u 100BASE-TX, 100BASE-FX
• Switch Technology2.0Gbps Switch Fabric
  Store and Forward Technology
• Flow ControlIEEE 802.3x Flow Control
• QoSIEEE 802.1Q Quality of Service
  IEEE 802.1p Class of Service

Performance

• System Throughput1.49Mbps
• Number of MAC Address with Auto-Learning2K
• Packet Buffer Memory448Kbits
• Transfer Packet Size64 - 1522 Bytes
• Broadcast Storm ControlYes. Enabled by Default
• Broadcast Traffic ThresholdEnabled by Default
  • 100Mbps200 Packets/Sec.
  • 10Mbps20 Packets/Sec.
• Class of Service2 Packet Forwarding @ Queues
  • High Queue(4 ~ 7)
  • Low Queue(0 ~ 3)
• Quality of ServiceSupports VLAN tag priority and IPv4 Packet Performance
  Enabled by Default
• Event AlarmBoth Port and Power Alarm
  Enabled by 9-pin DIP switch

• Device
  • DC Input Voltage10 to 60VDC
  • Current Consumption+24VDC 250 mA
• Power Consumption (max.)6W
• Power Connector1
• Power Connector Type6-Pin Screw Terminal Block
• Power Input RedundancyDual Redundant Independent Power Inputs
• Reverse Polarity ProtectionYes
• Power Alarm RelayAlarm for power failure notification
• Relay Rating0.5A Max. @ 24VDC

• Air Temperature
  • System On-40° to 75° C
  • System Off-40° to 85° C
• Operating Humidity (non-condensing)0% to 95%
• MTBF (Mean Time Between Failures)45.7 years

Ethernet Specification

• Connector TypeRJ45
• Number of Ports6
• Ethernet Cable TypeCat 3, Cat 4, Cat 5, Cat 5e (UTP or STP)
• Standard10/100BASE-TX Auto MDI/MDIX, Auto-negotiation
• Link Distance100 Meters
• Port Alarm RelayAlarm Relay for Port Failure Notification
• Relay Rating0.5A Max. @ 24VDC

Optical Fiber Specifications

• Fiber ModeSingle
• Connector TypeDuplex SC
• Number of Ports2
• StandardIEEE802.3 100BASE-FX
• Fiber Cable Type8-10/125um
• Link Distance (Max)30KM
• Wavelength1310nm
• Transmit Power (Min)-15dBM
• Transmit Power (Max)-8dBM
• Receive Sensitivity (Min)0dBM
• Receive Sensitivity (Max)-34dBM
• Link Budget19dBM

• Package Shipping Weight1.60 lbs
  0.73 kg
• Package Dimensions7" x 7.75" x 3.125"
  178 x 197 x 79 mm
• UPC Code7-56727-32058-6
• ECCN5A991
• Schedule B Number8517.62.0050

• EmissionsIEC61000-6-4 ? EN61000-6-4
  CISPR 22
  EN55022
  FCC Part 15 Subpart B
  Class A
• ImmunityIEC61000-6-2 / EN61000-6-2:
  IEC 1000-4-2/EN61000-4-2: ESD
  IEC 1000-4-3/EN61000-4-3: RF
  IEC 1000-4-4/EN61000-4-4: Fast Transient/Burst
  IEC 1000-4-5/EN61000-4-5: Surge
  IEC 1000-4-6/EN61000-4-6:Conducted Distrubance
  IEC 1000-4-6/EN61000-4-8: Magnetic Field
• SafetyUL Class I Div 2* (Certified for use in Groups A, B, C, D Hazardous Location)
  IEC 60950/EN60950 (LISTED)
  CSA C22.2 No. 60950/UL60950 Third edition
• Other Regulatory ApprovalsRoHS 2 compliant under CE
