Sealevel 7202ec

7202ec COMM+232.PCIe Low Profile PCI Express 2-Port RS-232 Serial Interface

Description

The 7202ec low-profile PCI Express serial interface provides two RS-232 serial ports. All modem control signals are implemented for maximum compatibility with a wide range of serial peripherals. Each serial port features an ultra high-speed UART, flexible clock prescalar, and large 256-byte Tx/Rx FIFOs allowing the adapter to support the widest range of standard and non-standard baud rates exceeding 1 Mbps. These features make the 7202ec ideal for data intensive applications that require reliable, ultra-fast throughput rates.

The Sealevel SeaCOM software driver and utilities make installation and operation easy using Microsoft Windows operating systems.

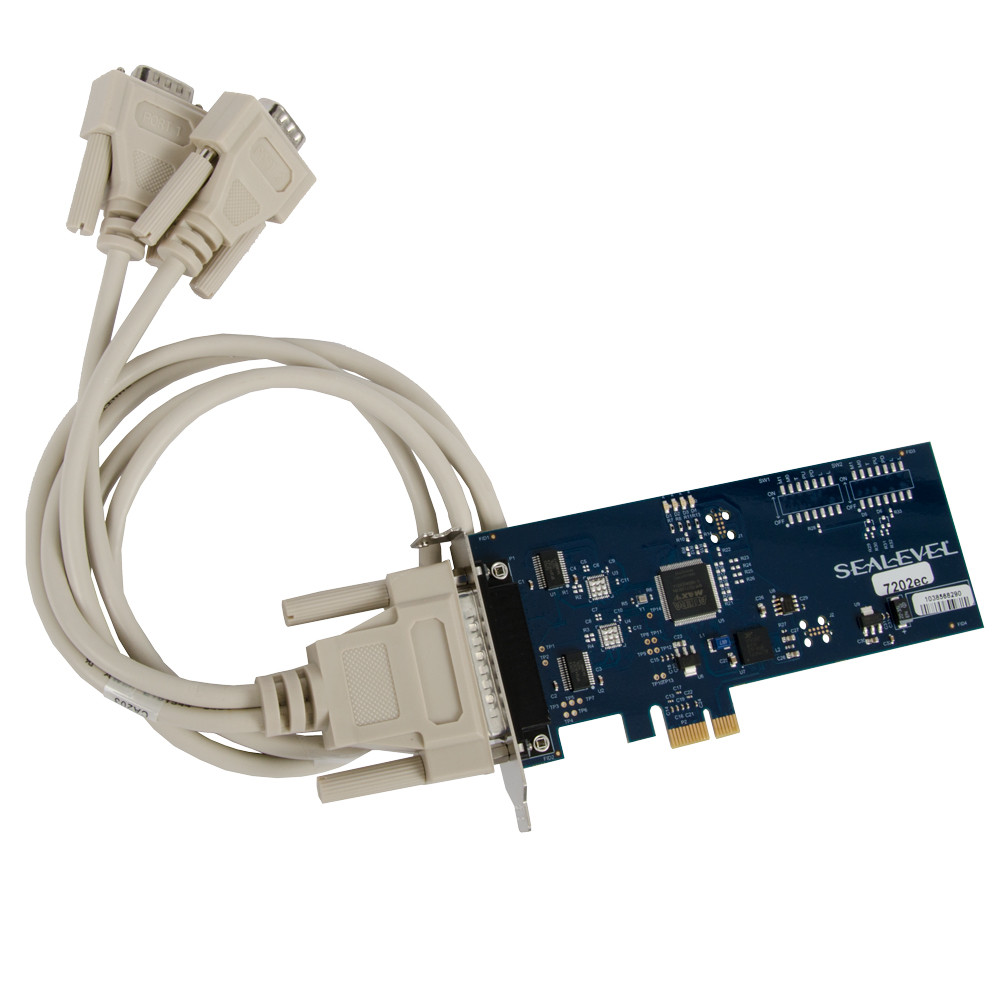

The 7202ec is a PCI Express X1 board compatible with any low profile PCI Express slot. If you have a standard size PCI Express slot, be sure to select the standard profile bracket. The board includes a 36 inch cable that terminates to two DB9M connectors.

• • Compliant with RoHS and WEEE directives
• • Ultra high-speed UART with 256-byte Tx and Rx FIFOs
• • Supports asynchronous data rates exceeding 1 Mbps
• • Bus-derived 125 MHz BRG and clock prescalar support wide range of baud rates
• • All RS-232 modem control signals implemented
• • PCI Express X1 compliant
• • Compatible with low profile PCI Express slots (standard profile slots with optional bracket)
• • Included 36″ cable terminates to two DB-9M connectors (Item# CA203)
