English 7161 COMM+16.PCI PCI 16-Port RS-232 Serial Interface
Description
The 7161 PCI serial interface provides sixteen RS-232 serial ports capable of data rates to 460.8K bps. Each RS-232 port implements all modem control signals for maximum compatibility with a wide range of peripherals. The board is Universal Bus (3.3V and 5V) compatible and utilizes 16C854 UARTs to provide 128-byte Tx/RxFIFOs for maximum reliability in data intensive applications.

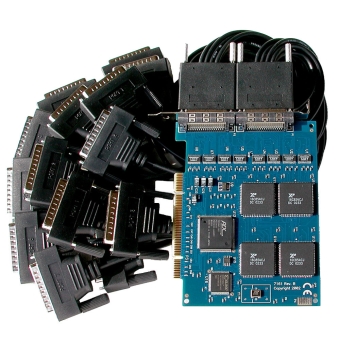

The board ships with two 36 inch cables that terminate to sixteen DB25M connectors. For DB9M connectors, select the appropriate cable option.
• 16C854 buffered UARTs with 128-byte FIFOs
• Data rates to 460.8K bps
• Universal Bus (3.3V and 5V) compatible
• All modem control signals implemented
• Two 36 inch cables terminate to sixteen DB-25M connectors
- Ports
- 16-Port
- Asynchronous
- Yes
- Bus
- PCI
- Connector
- DB25
- Interface
- RS-232
- High Profile
- Yes
