Sealevel 8018S Price upon request

8018S PIO-24.PCI PCI 24 Channel TTL Digital Interface

Description

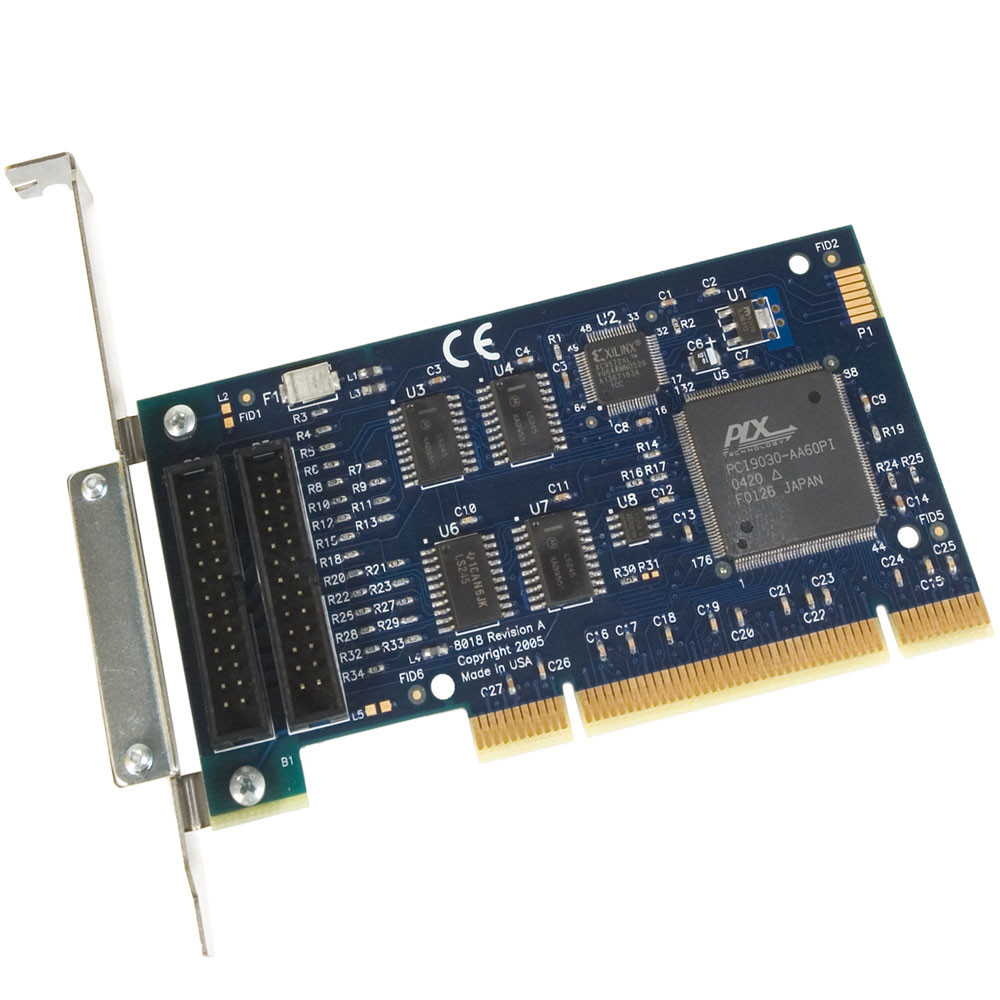

The 8018S Low Profile PCI digital I/O interface provides 24 channels of buffered drive digital I/O emulating 8255 mode zero. The board can be utilized for PC-based control and automation of equipment including sensors, switches, security control systems, and other industrial automation systems. 10K pull-up resistors are included and optional values are available.

The 8018S contains three groups of eight-bit I/O ports. Each group is individually configurable as input or output to suit the automation task. The board is Universal Bus (3.3V and 5V) compatible and ships with a ribbon cable terminating in an industry-standard 50-pin IDC connector.

The 8018S is for use in standard size PCI slots only. If you have a Low Profile PCI slot, order the 8018.

Sealevel’s SeaIO Classic software drivers and utilities make installation and operation easy using Windows and Linux operating systems.

Get a jumpstart on your digital I/O development with The Digital I/O Handbook that will provide helpful information that you will use again and again. Check out Chapter 1 for an overview of logic principles.

• • Compliant with RoHS and WEEE directives
• • 24 channels of buffered TTL I/O
• • Each 8-bit port individually configurable as input or output
• • 8255 mode 0 compatible • 10K pull up resistors on each bit



• • +5V power and ground provided on connector
• • MD1 Low Profile and Universal Bus (3.3V and 5V) compatible
• • Includes a 40 inch ribbon cable with (2) 26-pin IDC connectors to an industry-standard 50-pin IDC connector (Item# CA315)
• • SeaIO Classic software supports Microsoft Windows operating systems
• • Software support for Linux available
