Sealevel 5103S Price upon request

5103S ACB-232.LPCI 1 Port RS-232 Low Profile PCI, synchr./asynchr. Serial Interface(uses Z85230) w Standard Size Bracket

Description

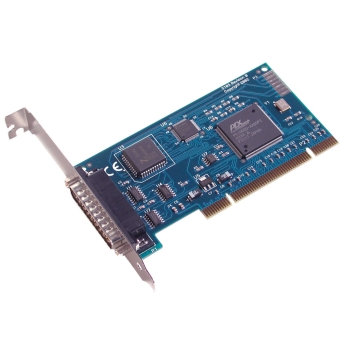

The 5103S PCI serial interface provides one RS-232 synchronous serial port capable of data rates to 128K bps. The board implements all modem control signals and is Universal Bus (3.3V and 5V) compatible.

The 5103S ships with the standard size PCI bracket to allow installation in a full size PCI slot. If you have a Low Profile PCI slot order the 5103.

Software support, critical for successful synchronous communication development, is provided through Sealevel’s SeaMAC synchronous serial driver. HDLC/SDLC protocols are supported as well as certain configurations of Monosync, Bi-sync and Raw modes.

• Z85230 Enhanced Serial Communications Controller (ESCC)
• Data rates to 128K bps
• Universal Bus (3.3V and 5V) compatible
• All modem control signals implemented
• DB-25M connector
