English 430E SeaI/O-430E Ethernet Modbus TCP to 32 Isolated Inputs
Description

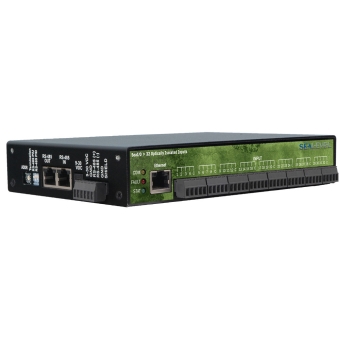

Interface 32 optically isolated inputs via any Ethernet connection with the SeaI/O-430E. Inputs can range from 5-30VDC and provide 300V external isolation and high channel-to-channel isolation. Connection is made using convenient 3.5mm removable screw terminal connectors. The SeaI/O-430E is powered from your 9-30VDC source, or select from a variety of Sealevel power supply options.
Communicate with the SeaI/O-430E using industry standard Modbus TCP protocol or use the Sealevel SeaMAX API software libraries from your application program. Sealevel’s SeaMAX software drivers and utilities make installation and operation easy using Microsoft Windows and Linux operating systems.
The Sealevel Modbus Connect app for iOS allows you to access the registers, coils and discrete I/O of your Sealevel Modbus devices and is available on the App Store. Use the app to remotely access I/O in the field or for testing and troubleshooting during application development.
Expand your I/O network with SeaI/O N-series products. SeaI/O modules are available with Reed and Form C relays, optically isolated inputs, TTL interfaces, A/D and D/A functionality. Up to 246 additional expansion modules can be added using convenient pass-through connectors.
Get a jumpstart on your digital I/O development with The Digital I/O Handbook that will provide helpful information that you will use again and again. Check out Chapter 1 for an overview of logic principles.
- • 10/100BaseT Ethernet Modbus TCP interface
- • 32 optically isolated inputs
- • Removable screw terminals simplify field wiring
- • Input power via terminal block or modular connector
- • DIN rail mount or table mount
- • Sealevel SeaMAX software supports Microsoft Windows and Linux operating systems
