Sealevel 8111

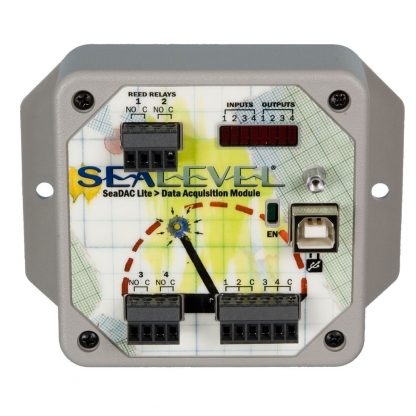

8111 SeaDAC Lite DIO-8: USB to 4 isol. Inputs / 4 Reed Relay Outputs w SeaLATCH

Control and monitor 4 optically isolated inputs and 4 Reed relay outputs via any USB connection with the 8111. Inputs can range from 5-30VDC, while the Reed relays provide long life switch closures well suited to low current devices. Each Reed relay has a discrete common and each pair of inputs share a common. Status LEDS display I/O activity and field wiring is simplified via 3.5mm removable terminal blocks. The SeaMAX software suite supports the SeaDAC Lite family and is designed to work with third party applications via the SeaMAX API. Sealevel's SeaMAX software drivers and utilities make installation and operation easy using Windows 2000, XP and Vista operating systems. The 8111 integrates a patent-pending SeaLATCH USB port, which is fully compatible with standard USB cables. When used with the included USB cable with a SeaLATCH USB type B connector, the metal thumbscrew provides a secure connection to the device and prevents accidental cable disconnection. SeaDAC Lite modules are housed in a rugged, attractive plastic enclosure ideal for mounting on walls, under counters, or inside panels. The 8111 is USB bus powered, so no external power supply is needed. Standard operating temperature range of SeaDAC modules is 0°C to 70°C and extended temperature range (-40°C to +85°C) is optional.

4 OutputsPower Requirement+5V @ 500mAInput Isolation300VInput Range5-30 VDCContact Voltage60VDC max.Contact Current500mA max.Contact Operate Time0.5ms max.Contact Bounce Time0.5ms max.Contact Release Time0.2ms max.Operating Temperature0 - +70°CStorage Temperature-50° - +105°CHumidity Range10 - 90% R.H.USB Spec.1.1 Compliant2.0 CompatibleDimensions4.3"" (L) x 3.4"" (W) x 1.3"" (H)

Features:

• 4 optically isolated inputs
• Optical isolation provides protection against surges and ground loops
• 4 SPST Form A Reed relays
• Removable 3.5mm screw terminal blocks simplify field wiring
• Optional removable spring-clamp terminal blocks available
• Status LEDs display I/O activity and USB connection
• Patent-pending SeaLATCH USB port provides locking connection with SeaLATCH USB cables via metal thumbscrews
• Powered by USB connection
• Sealevel software supports Windows 2000/XP/Vista operating systems
• Housed in rugged, attractive plastic enclosure
• Includes 6’ USB type A to SeaLATCH USB type B device cable
