Sealevel 8203FX Price upon request

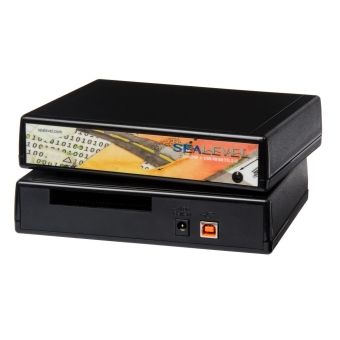

8203FX SeaLINK PIO-48 USB to 48 Channel TTL Digital Interface Adapter

Description

This product is classified as legacy and will be supported with limited, available inventory. Call for current pricing and product availability.

Sealevel will support legacy products through technical and warranty support, software drivers and product manuals. Please contact Sales for further information. For new product designs, we recommend the SeaI/O-462U.

The SeaLINK® 8203FX USB digital I/O interface adapter provides 48 channels of buffered drive digital I/O. Connect one or two industry standard relay racks for PC based control and automation of equipment including sensors, switches, security control systems and other industrial automation systems.

The 8203FX digital I/O interface adapter contains six groups of eight-bit I/O ports, configurable as inputs or outputs to suit the automation task. The mode of each of the ports is user selectable as inputs or outputs by simply writing a control word to the port register. This gives the user the ability to customize the combination of inputs and outputs as needed. Two 50-pin headers provide the interfaces to industry standard relay racks and terminal blocks.

Sealevel’s SeaIO Classic software drivers and utilities make installation and operation easy using Microsoft Windows operating systems.

To simplify installation and configuration, a printed copy of the USB Digital I/O QuickStart Guide is included with all USB Digital I/O orders.

Important: If you are a previous customer of non-FX SeaLINK digital I/O adapters, you must update your SeaIO driver for proper operation of this 8203FX module. Please read this Support Article for details.

Get a jumpstart on your digital I/O development with The Digital I/O Handbook that will provide helpful information that you will use again and again. Check out Chapter 1 for an overview of logic principles.

• • Provides 48 channels of buffered TTL I/O
• • Each 8-bit port individually configurable as input or output
• • 10K ohm pull up resistors on each port bit
• • +5V power and ground provided on connector
• • Two industry standard 50-pin solid-state relay rack connectors
• • Includes 5VDC @ 2.4A wall mount power supply (Item# TR101)
• • Includes 6′ USB device cable (Item# CA179)
• • DIN rail mounting option available (Item# DR102)
• • Sealevel SeaIO Classic software supports Microsoft Windows operating systems
