Description

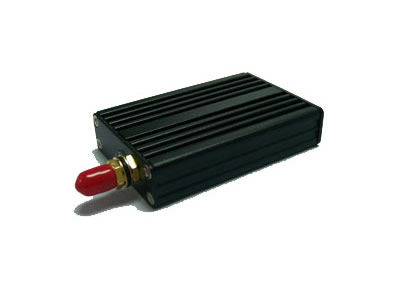

HXJZ-877 2000m-3000m Low Power RS-232/RS-485/TTL to RF Wireless Module

Model: HXJZ-877

Name: 2000m-3000m Low Power RS-232/RS-485/TTL to RF Wireless Module

Description

HXJZ-877, the Low-power wireless transceiver data module is used as the wireless data transceiver in long-ranges, with the small size, weight and power consumption and good stability and reliability.

Specification

uses GFSK modulation mode, reliable line of sight transmission distance up to 2000m;
Carrier frequency 433 MHz;
provides 16 channels;
interface / channel rate: 1200/2400/4800/9600/19200/38400bps;
Interface: TTL, RS-232, RS-485 selected by the user;
send and receive data conversion automatically, as long as theinterface to send / receive data to the conversion time is short;
can be used for point to point, multipoint, multi-pointcommunication and other combinations;
transparent data transmission, can transmit long data frames;
automatically filter out false data generated in the air, long-term reliability is good, very low failure rate;
Power: Power 500mw, receiving current <45mA, transmittingcurrent <360mA, Sleep current <0.1mA;
Three power modes: hardware wake up, wake up the serial port, air wake;
Power Supply: DC +4.5 V ~ +5.5 V;
Temperature: -25 ℃ ~ +85 ℃;
size: 63mm × 43mm × 15mm (excluding antenna base);Weight: 56 grams;
exchange model: HXJZ-87 series;
Standard Antenna: SMA thick whip antenna or a small suction cup.

Feature

Using CC1020 chip, bare boards, small size, easy to useembedded.
Narrowband interference is strong, with a filter circuit, high receiver sensitivity, power, transmission is stable and reliable distance.

Antennas

Application

AMR Automatic Meter Reading
Wireless alarm and security systems
Home automation
Low power telemetry
Wireless conference voting system;
Sports training & competition;
Wireless dishes ordering;
Wireless POS, PDA wireless smart terminal;
Electronic bus station and intelligent traffic;
RF transmitter Wireless electronic display screen and queuing machine;
Wireless telemetry Charging for parking, parking lot;
Wireless modem Automobile inspection and four-wheel orientation;
Wireless sensor Industrial wireless remote control and air conditioning remote controller;
Observation and predication of oil well and hydrological information;
Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;
