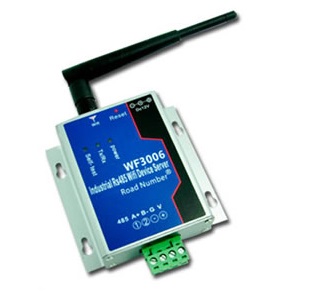

Soarland WF3006

WF3006 module is a fully independent embedded wireless LAN access devices. The module integrates MCU, in line with 802.11 b / g 2.4G standard wireless RF transceiver, TCP / IP protocol stack and applications, WF3006 Wi-Fi module provides a very rich user interface device connected to the module, including UART , SPI, I2C, I2S, MII / RMII. NEW WF3002/3006 Wi-Fi module is easily integrated into the final product, accelerate product development, shorten time to market, to provide users with a low-cost, reliable wireless solutions.

WF3006 WIFI virtual serial port can be done, we installed the software distribution, the device is fully equivalent to the one computer and wireless communications. Simple and practical.
WF3006 is a device, a transparent two-way transmission of transparent transmission, it can also be closed, you do not know WIFI, do not need to know the technical details, you can use our software to extend wireless serial, free your serial devices, attendance, access control, serial printers, RFID, PLC, etc. love to put where to put where. There are guests in the plant by land from the four corners of shelf wireless devices, WF3006 and Siemens PLC connected RFID, mobile work in packaging workshop. prefix = o
WF3006 module can set the operating mode, the built-in web page or by logging in through AT commands, you only need to set once, then every time you start will follow this work mode.
WF3006 module sets the restart button. Press three seconds that can enter the factory state.
WF3006 module can also optional external DC power supply lines can be connected to the battery easy to work outdoors.
WF3006 with Android phones can also log in directly to the built-in Web page, you can use Smart phone family, supporting the development and the like. We are not like some of the other products need patching to access or can not be accessed. We also provide testing software and Andrews Andrews programming examples.

High-speed UART
. Supports baud rate range: 1200 ~ 921600bps
. Support for hardware flow control (RTS / CTS)
. Technical support using DMA burst transfer (burst transfer)
High-speed SPI
. Supports a maximum clock frequency of 50MHz
. Support Mode0 and Mode3 timing mode
. MSB first pass
. Technical support using DMA burst transfer (burst transfer)
Wireless
. Support IEEE802.11b / g wireless standards
. Support Frequency Range: 2.412 ~ 2.484 GHz
. supports two types of wireless networks: basic network (Infra) and ad hoc network (Adhoc)
. Support for multiple security authentication mechanisms: WEP-64/128, TKIP (WPA-PSK), AES (WPA2-PSK)
. Support for fast networking
Other
. Supports TCP, UDP, ICMP, IGMP, DHCP, ARP, DNS, SMTP, SNTP, PPPoE and HTTP network protocols
. Support for transparent data transmission
. Support for a variety of parameters configurations: Serial / WEB / wireless connection
. Integrated PCB antenna
. Online firmware upgrade
. GPIOs
