PC cards in all formats for all protocols
As a uniform standard, the cifX PC card family supports all Real-Time Ethernet and fieldbus systems for PC-based automation on the market.
The entire protocol stack is executed on the PC card and data is exchanged with the host via dual-port memory or DMA (Direct Memory Access). Due to the standardized Hilscher platform strategy, all PC cards use the same drivers and tools - regardless of protocol and card format. Hilscher netX technology makes it possible to implement all Real-Time Ethernet protocols with one hardware. A protocol change is carried out by loading a different firmware.
Always the right solution! Whether different cable lengths, M12 sockets, additional NVRAM, extended temperature range, 2-channel cards or remote network interfaces - numerous hardware options always offer the perfect solution for your individual application. In addition, a wide range of device drivers and a free C toolkit ensure usability on all systems.
The PC-based automation market is evolving and the cifX PC card family is keeping pace. By constantly expanding the cifX portfolio with new standards, protocols and formats such as M.2, Mini PCIe Halfsize or CC-Link IE Field, our customers are ideally equipped for new market requirements.

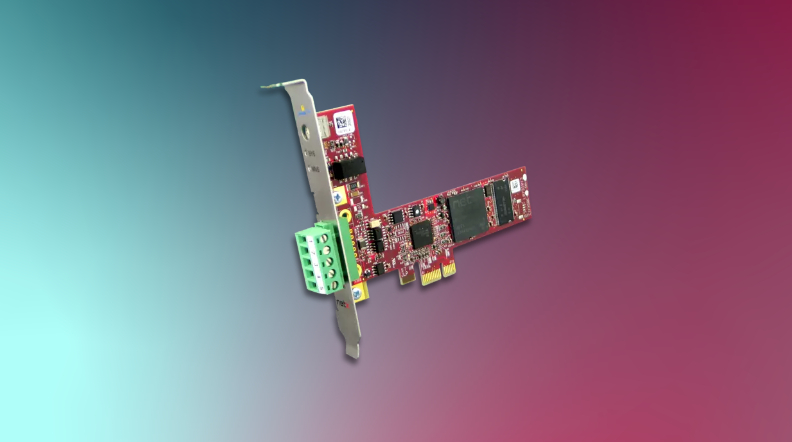

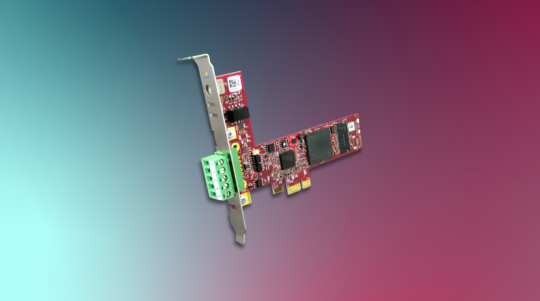

| Product | Product name | CIFX 50E-DN |
| Part number | 1251.510 | |
| Brief description | PC Card cifX PCI ExpressDeviceNet Master or Slave | |
| Function | Communication interface with PCI Express and DeviceNet interface | |
| Communication controller | Type | netX 100 |
| Integrated Memory | RAM | 8 MB SDRAM |
| FLASH | 4 MB serial Flash EPROM | |
| System interface | Bus type | PCI Express, One Lane Port |
| Transmission rate | 2 GBit/s | |
| Data access | DPM or DMA* (Direct Memory Access), *beginning from Hardware Revision 4 | |
| Data width | 32 bit | |
| Communication interface | Communication standard | DeviceNet |
| Interface type | ISO-11898 according to DeviceNet specification, optically isolated | |
| Isolation voltage | 1000 V DC (tested for 1 minute) | |
| Connector | COMBICON, male, 5-pin | |
| Power supply | Supply voltage | +3.3 V DC ±5 % |
| Maximum current (typically) | 800 mA (at 3,3 V) | |
| Connector | via PCI Express Bus | |
| Displays | LED display | SYS, System status LED |
| MNS, Module Network Status (duo LED) | ||
| Operating element | Rotary switch slot number (card ID) | To set the slot number (card ID) |
| Permitted ambient conditions | Operating temperature range | -20 °C ... +70 °C (Air flow during measurment: 0,5 m/s) |
| Storage temperature range | -40 °C ... +85 °C | |
| Humidity | 10 % … 95 % relative humidity, no condensation permitted | |
| Environment | For UL compliant usage: The device must be used in a pollution degree 2 environment. | |
| Altitude | 0 m … 2000 m | |
| Device | Dimensions (L x W x H) | 120 mm x 86 mm x 18.5 mm (from hardware revision 4) |
| Mounting/Installation | PCI Express x1 slot (3.3 V) | |
| Conformity | RoHS | Yes |
| Conformance with EMC directives | CE sign | Yes |
| UKCA sign | Yes | |
| Emission | EN 55011 / EN BS 55011 (Radio disturbance characteristics - Limits and methods of measurement) | |
| Immunity | EN 61000-4-2 / EN BS 61000-4-2: (Electrostatic discharge test) | |
| EN 61000-4-3 / EN BS 61000-4-3 (Radiated, radio-frequency, electromagnetic field test) | ||
| EN 61000-4-4 / EN BS 61000-4-4 (Burst Electrical fast transients/burst test) | ||
| EN 61000-4-5 / EN BS 61000-4-5 (Surge test) | ||
| EN 61000-4-6 / EN BS 61000-4-6 (to conducted disturbances, induced by radio- frequency fields) | ||
| EN 61000-4-8 / EN BS 61000-4-8 (power frequency magnetic field test) | ||
| EN 61000-6-2 / EN BS 61000-6-2 (for industrial environments) | ||
| UL certification | UL | The device is certified according to UL 508 |
| UL file | UL-File-Nr. E221530 | |
| Configuration | Configuration software for master and Slave | SYCON.net |
| Configuration software Slave | netX Configuration Tool |
