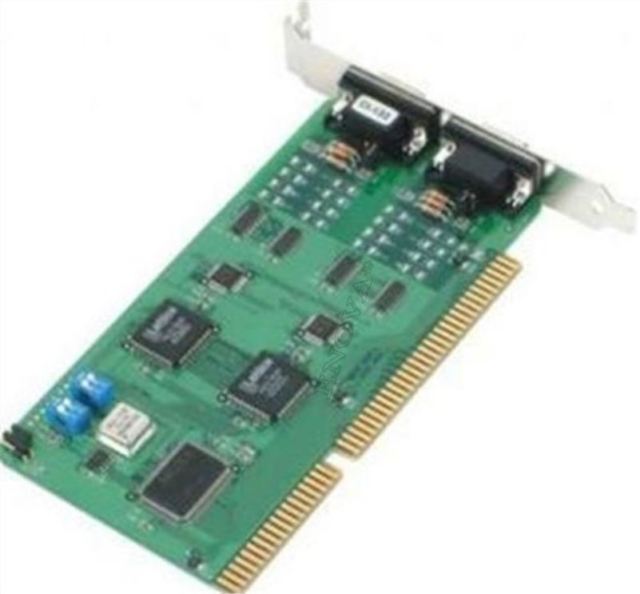

English CI-132IS - 2-port RS-422/485 ISA board with optical isolation and surge protection
Features and Benefits
- Economical RS-422/485 ISA boards with two DB9 male connectors on the board for easy wiring
- RS-485 data direction control with ADDC® or by RTS
- 921.6 kbps maximum baudrate for super fast data transmission
- 16-byte FIFO and on-chip hardware flow control
- Surge protection and electrical isolation available
- Built-in termination resistors
Overview
The CI-132 series ISA boards come with 2 independent RS-422/485 serial ports for connecting data acquisition equipment and other serial devices to a PC. Connect your devices over longer distances—up to 1.2 km (4000 ft)—and ensure greater reliability in industrial environments with on-board surge protection and electrical isolation (available with some models). Enjoy greater versatility by using point-to-point full duplex connections, or set up a half duplex RS-485 multi-drop network.
| • Hardware | |
| Comm. Controller | 16C550C or compatible x 2 |
| Bus | 16-bit ISA |
| Connectors | DB9 male x 2 |
| • Serial Interface | |
| Number of Ports | 2 |
| Serial Standards | RS-422/485 |
| Max. No. of Boards per PC | 4 |
| • Serial Line Protection | |
| ESD Protection | 25 kV on the board (CI-132IS only) |
| Electrical Isolation | 2 kV (CI-132I/IS only) |
| • Performance | |
| Baudrate | 50 bps to 921.6 kbps |
| Built-in Termination Resistor | 120 ohm (enabled by jumper for RS-485-2w) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| I/O Address | 0x0000-0xFFFF (default = 0x180) |
| IRQ | 2 (9), 3, 4, 5, 7, 10 (default), 11, 12, 15 |
| • Serial Signals | |
| RS-422 | TxD+(B), TxD-(A), RxD+(B), RxD-(A), RTS+(B), RTS-(A), CTS+(B), CTS-(A), GND |
| RS-485-2w | Data+(B), Data-(A), GND |
| RS-485 Data Control | ADDC® (automatic data direction control), or by RTS |
| • Operating Systems | |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x |
| Note | Please refer to Moxa’s website for the latest driver support information. |
| • Physical Characteristics | |
| Dimensions | CI-132: 75 x 157 mm (2.95 x 6.18 in) CI-132I/IS: 105 x 157 mm (4.13 x 6.18 in) |
| • Environmental Limits | |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | Up to 2000 m |
| Note | Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Standards and Certifications | |
| EMC | CE, FCC |
| EMI | EN 55022, FCC Part 15 Subpart B Class B |
| EMS | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4 |
| Green Product | RoHS, CRoHS, WEEE |
| • MTBF (mean time between failures) | |
| Time | 441,015 hrs |
| Database | Telcordia (Bellcore), GB |
| • Power Requirements | |
| Power Consumption | CI-132: 240 mA max. @ +5 V CI-132I/IS: 620 mA max. @ +5 V |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
Available Models
| Model No. | Description | |
|---|---|---|
| CI-132 | 2-port RS-422/485 board | |
| CI-132I | 2-port RS-422/485 board with optical isolation | |
| CI-132IS | 2-port RS-422/485 board with optical isolation and surge protection |
