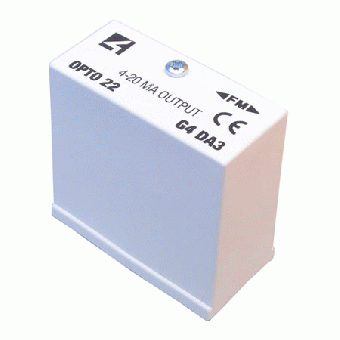

English | G4DA3 +4 To +20 mA Output |
  |
| G4DA3 | G4DA8 | |
| Output current | 4-20 mA | 0-20 mA |
| Accuracy | 16 µA | 20 µA |
| Response time | Full scale step change in 3 ms |
| Maximum loop resistance when sourcing loop | 650 ohms |
| Isolation (Transient) Input-to-output Input-to-analog supply | 4,000 Vrms 4,000 Vrms |
| Ambient Temperature Operating Storage | -30 to 70 °C -40 to 85 °C |
